Roof penetrations
Roof Nozzles
Published roof nozzle drawings for 2, 3, and 6 inches, with additional diameters and project-specific roof geometry available by quote.
Published source drawingFW-RF1-06-304
View the complete sheet and confirm the project requirements.
Published configurations
Sizes tied to source drawings.
The drawing file, not the screen image size, is the reference for fabrication dimensions.
| Nominal size | Fluent part number | Detail |
|---|---|---|

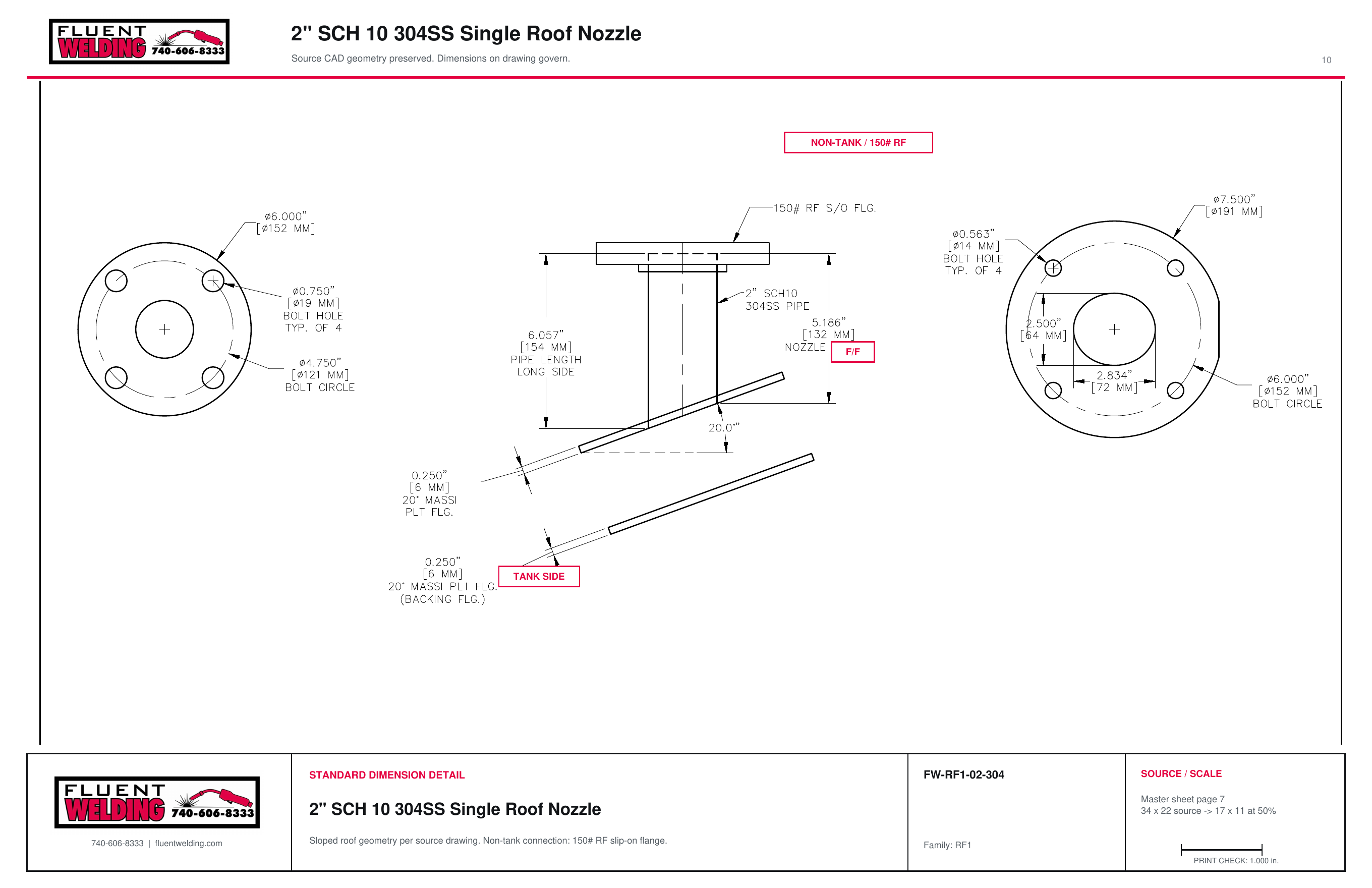

| 2" | FW-RF1-02-304 | View drawing → |
| 3" | FW-RF1-03-304 | View drawing → |

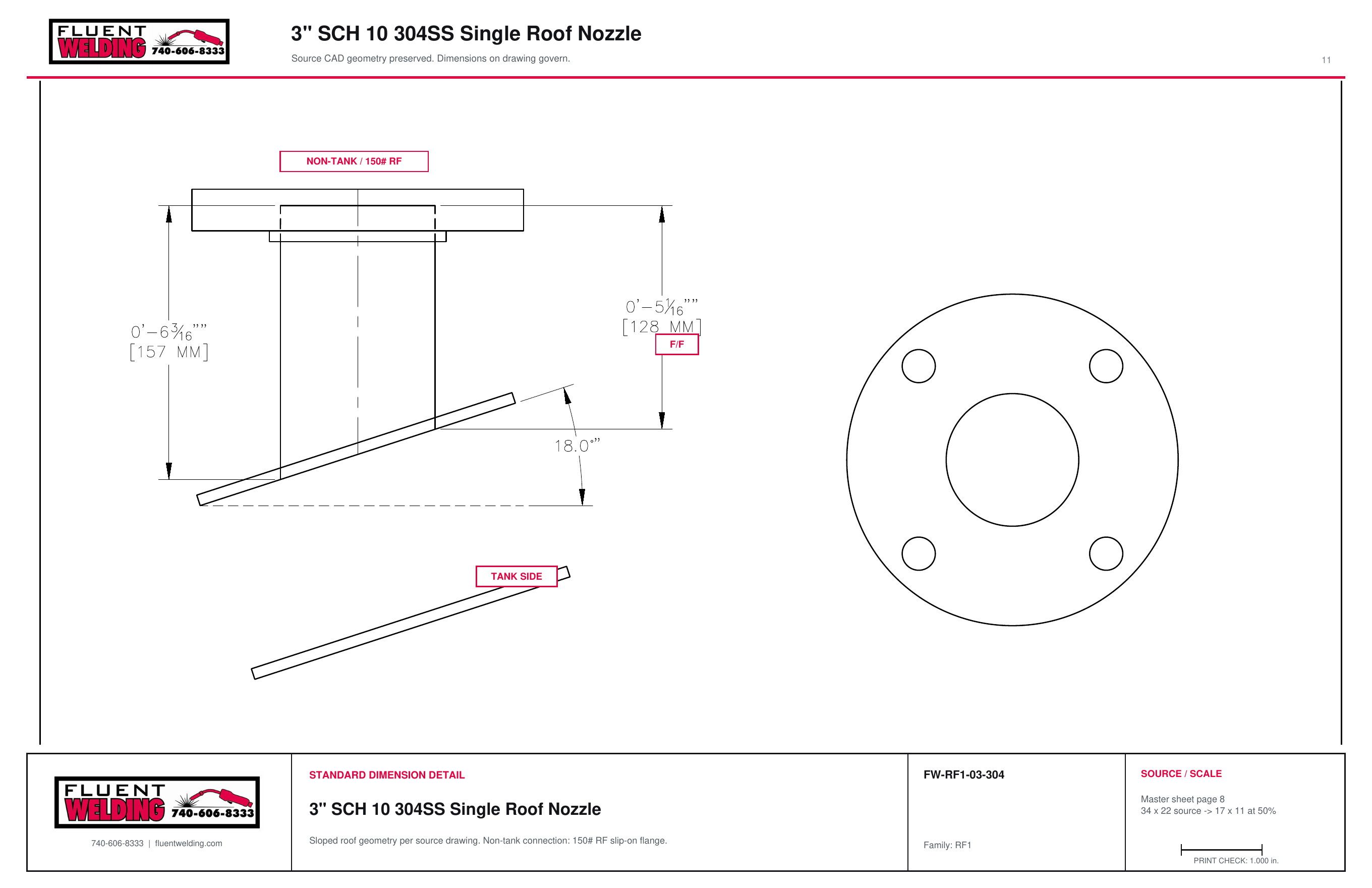

| 6" | FW-RF1-06-304 | View drawing → |
Technical resources
View the actual fabrication sheets.
Open a full-size preview or download the original PDF. Published files have been carried forward without redrawing the geometry.
Construction and custom requirements
Confirm the complete detail.
Published material
The supplied standard details use 304 stainless and Schedule 10 stainless pipe. Confirm any alternate grade, schedule, or material during quoting.
Connection requirements
The catalog specifies a 150# raised-face slip-on flange at the non-tank connection unless the approved quote or drawing states otherwise. Tank-side geometry follows the source sheet.
Project confirmation
Confirm roof slope, projection, flange geometry, dimensions, material sourcing, finish, and inspection requirements before fabrication release.
